Image Sensor
|
5 Mega Pixels Color CMOS
|
|

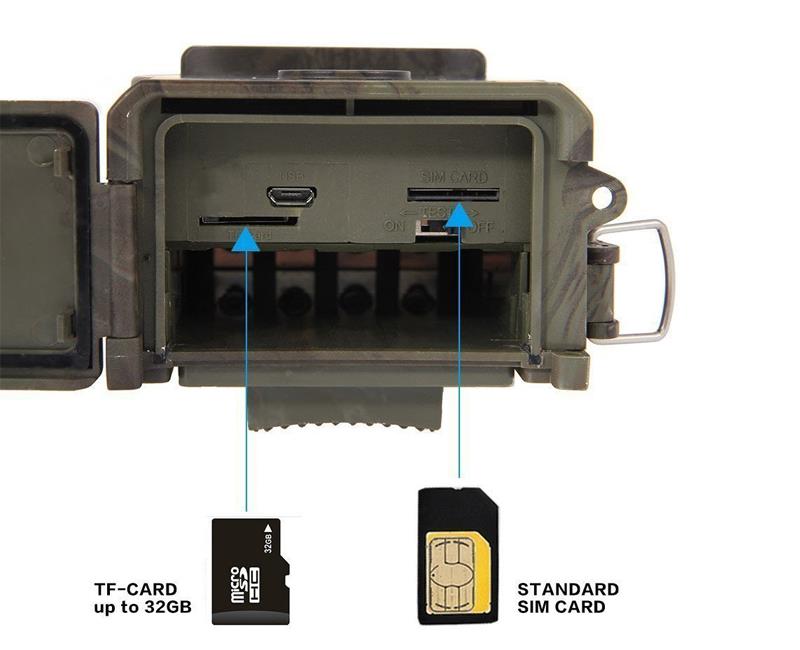

Memory
|
Micro SD Card up to 32GB
|
|
Lens
|
F=3.1; FOV=120 °
|
|
Size
|
150mm * 90mm * 65 mm
|
|
TFT Display Screen
|
2.0 inch
|
|
LED
|
Black 940nm
|
|
PIR Distance
|
High/Normal/Low
|
|
PIR Sensor Sight Angle
|
120 Degrees
|
|
Number of IR LED
|
44LEDs
|
|
Max Night Vision Lighting Distance
|
65ft/20 meters
|
|
Trigger Speed
|
0.3second with 3 PIRs
|
|
Triggering Interval:
|
1/5/10/30sec/min (default 1 sec)
|
|
Selectable Image Resolution:
|
16MP/12MP/8MP
|
|
Multiple Photo on one detection
|
1/3/6/9
|
|
Video Resolution
|
1080P/720P/VGA
|
|
Full Size Photo Transmission
|
Yes
|
|
Video sending
|
Yes (5s-30s video send by SMTP/FTP)
|
|
Date Time Imprint
|
Yes
|
|
Time lapse
|
Yes
|
|
GPS Location
|
Longitude and Latitude stamped
|
|
Password Security
|
4 digital PIN codes
|
|
Frequency Bands
|
FDD-LTE: B1/B3/B5/B7/B8/B20
TDD-LTE: B38/B40/B41
WCDMA: B1/B5/B8
GSM:900/1800
|
|
Remote Control
|
SMS
|
|
Video Transmission
|
30s to E-mail
|
|
MMS to phone
|
1-3 phone number
|
|
MMS to E-mail
|
1-3 E-mail address
|
|
Stand-by current
|
0.1mA
|
|
Stand-by time
|
6Months
|
|
Power Supply
|
8x AA batteries, external 6V/1A DC
|
|
Water proof
|
IP65
|
|
Security authentication
|
FCC, CE, RoHs
|
